Medium Voltage Switchgear | Schatz Electric Hong Kong, China.

At Schatz Electric, we offer wide range of medium-voltage (MV) switchgear with air, gas or shielded solid insulated technologies. Our MV switchgear can be used in a full range of primary or secondary distribution applications with AIS, GIS and 2SIS technologies embedded with leading protection and automation that brings IoT connectivity to your MV installation.

Secondary Air Insulated Switchgear

Our latest secondary distribution switchgear is a perfect fit for large buildings, industries and electricity companies. Using air-insulated technology and rated up to 36 kV, these well-known MV switchboards have field-proven designs for peace of mind. The latest IoT-connected features bring predictive maintenance possibilities to maximize efficiency and minimize downtime.

SM AirSeT

SF6-free Modular Switchboard up to 24kV. Green and digital modular air-insulated MV switchgear for secondary distribution networks and installations for commercial and industrial buildings sectors and utilities. It features future-proof green design combining pure and vacuum technology to replace greenhouse or alternative gas.

Part of SeT Series

SM6-24

Modular Switchboard up to 24 kV. An Air-Insulated modular switchboard that guarantees hi-reliability for your underground secondary distribution, flexible and easy to install and operate.

Part of SeT Series

SM6-36

Air-Insulated Modular Switchboard 36 kV. Metal enclosed, highly reliable, flexible and simple and switchgear for secondary underground distribution applications

Part of SeT Series

MODULARC 36 kV

Air-Insulated Switchgear up to 36 kV. -

UNIFLUORC 24 kV

UNIFLUORC 24 kV

Air-Insulated Switchgear up to 24 kV. -

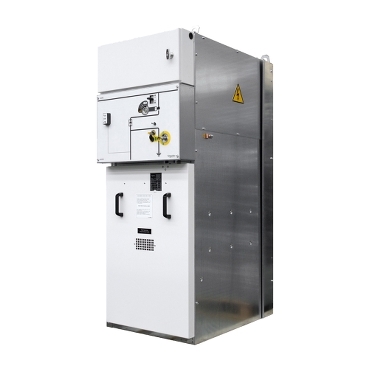

UNISARC 24 kV

Air-Insulated Switchgear up to 24 kV. -

Primary Air Insulated Switchgear

Using air-insulated technology, our primary distribution switchgear offers high-performance functionality up to 40.5 kV. Our well-known and proven designs now feature the latest connected features, such as embedded arc flash protection and condition monitoring sensors to help you maximize the life of your switchboard.

MCset 1-2-3

Withdrawable Circuit Breakers?up to 17.5 kV. Medium voltage switchgear (AIS type): withdrawable circuit-breakers up to 17,5 kV

Part of SeT Series

MCset 4

Air-Insulated Primary Switchboard up to 24 kV. Medium voltage switchgear (AIS type):withdrawable circuit-breakers 24 kV

Part of SeT Series

PIX

Air-Insulated Switchgear. -

Part of SeT Series

PIX High

Air-Insulated Switchgear High Ratings 50 kA. -

Part of SeT Series

PIX MCC

Fused Vacuum Contactor up to 7.2 kV. -

Part of SeT Series

Motorpact

Medium-Voltage Motor Control Centre. MV motor starter with vacuum contactor up to 7.2 kV

GenieEvo Switchgear module

GenieEvo

MV fixed pattern modular switchboard up to 13.8 kV. GenieEvo is a comprehensive, environmentally insensitive medium voltage switchgear range for utilities, MV consumer and industrial substations, data centers, large commercial centres, hospitals application

Part of SeT Series

NEX 17

Air-Insulated Primary Cubicle up to 17.5 kV. Medium voltage switchgear (AIS Type) Medium voltage switchgear (AIS Type) withdrawable circuit-breaker up to 17.5 kV

Part of SeT Series

NEX 24

Air-Insulated Primary Switchboard up to 24 kV. Medium voltage switchgear(AIS type): withdrawable circuit-breakers up to 24kV

Part of SeT Series

F400-F400xe

Air-Insulated Metalclad Switchboard up to 40.5 kV. Medium voltage switchgear:withdrawable circuit-breakers from 36 to 40.5 kV

Part of SeT Series

DNF7

Air-Insulated Switchgear up to 40.5kV. -

Part of SeT Series

Masterclad

Air-Insulated Primary Switchboard up to 27 kV. Medium voltage switchgear (AIS type) withdrawable circuit-breakers up to 27kV

Part of SeT Series

NEXRof (RoNEX)

Rolling on Floor Metal-Enclosed Cubicle. A rolling on floor metal-enclosed switchboard

PIB

Air-Insulated Switchgear. -

VISAX

Air-Insulated Switchgear with Rotary Breaker up to 24 kV. -

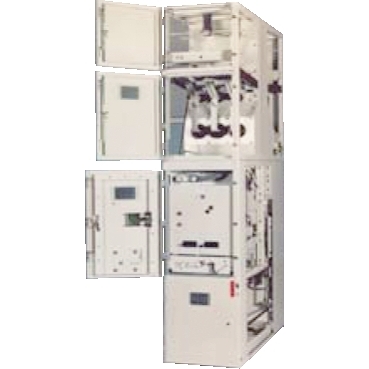

WBD

Double Busbar Switchgear up to 12 kV. -

GEMSTART 5

Intelligent motor controller. -

Primary Gas Insulated Switchgear

The primary role of Gas Insulated Switchgear (GIS) is to carry and break currents within electrical circuits. Gas-insulated primary distribution switchgear offers high-performance functionality with compact installation footprints, unmatched by other designs. GIS's reliability stems from its ability to protect components from pollutants and external interferences, ensuring consistent, high-quality power supply.

Rated up to 52kV, our well-known and proven designs are connected with the latest devices and features like arc flash protection and condition monitoring sensors to help you maximize the life of your switchboard.

GMA

Gas-Insulated Switchgear up to 24 kV. -

Part of SeT Series

GHA

Gas-Insulated Switchgear up to 40.5 kV. -

Part of SeT Series

CBGS-0

Gas-Insulated Primary Switchboard up to 36 Kv. SF6 insulated metal-enclosed switchgear for Indoor substation (HV/MV-MV/MV) for Power Supply in Utilities, Windfarms, Railways, Data Centers, Oil & Gas, MMM, Airports, etc

WS

Gas-Insulated switchgear up to 3000 A. -

Part of SeT Series

CBGS-2

Gas-Insulated Primary Switchboard up to 52 kV. SF6 insulated metal-enclosed switchgear up to 52 kV

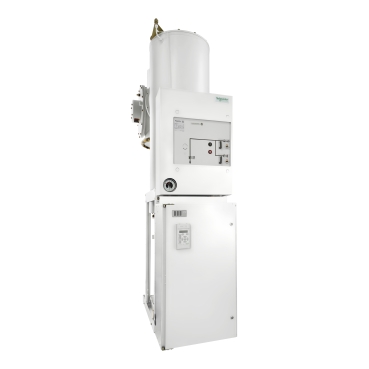

WI

Gas-Insulated Switchgear to 52 kV. -

Part of SeT Series

Secondary Gas Insulated Switchgear

Secondary Gas Insulated Switchgear Whether electric companies, windfarms or private networks, secondary switchgear makes the connection to our homes and businesses to bring us reliable power everyday. Space is often at a premium, meaning that our range of secondary gas insulated switchgear designs are the perfect fit. Our ring main units (RMUs) are becoming IoT connected and smart to bring extra benefits and everyday simplicity.

RM AirSeT

Gas Insulated Secondary Switchgear Ring Main Unit SF6 Free. SF6-free GIS ring main unit (RMU) and modular MV switchgear for secondary distribution applications up to 24kV.

Part of SeT Series

RM6

Medium Voltage Ring Main Units up to 24kV. Ring Main Units up to 24kV , Short Time current rating up to 21kA ,rated for Internal arc up to 20kA AFLR with options

Part of SeT Series

Gas-Insulated Ring Main Unit up to 24 kV

FBX

Gas-Insulated Ring Main Unit up to 24 kV. -

Part of SeT Series

Ringmaster C

MV Compact Switchboard (Ring Main Unit) up to 12 kV. Hi-reliable Gas Insulated Switchboard for underground secondary distribution. For indoor and outdoor applications, up to 13.8kV

Part of SeT Series

DVCAS

36kV Secondary Gas Insulated Switchgear. Hi-reliable Gas Insulated ring main unit for secondary distribution applications, till 38.5 kV

Shielded Solid Insulated Switchgear

Shielded Solid Insulated Switchgear The latest technology in MV switchgear design, shielded solid insulation means that all live parts are earth shielded and encapsulated to minimize risks during maintenance. Combining vacuum and solid encapsulation, this SF6-free technology can be found in primary or secondary distribution applications up to 17.5 kV.

PremSet

A new generation of switchgear technology. A new generation of switchgear technology

Part of SeT Series

SM AirSeT

SF6-free Modular Switchboard up to 24kV. Green and digital modular air-insulated MV switchgear for secondary distribution networks and installations for commercial and industrial buildings sectors and utilities. It features future-proof green design combining pure and vacuum technology to replace greenhouse or alternative gas.

Part of SeT Series

RM AirSeT

Gas Insulated Secondary Switchgear Ring Main Unit SF6 Free. SF6-free GIS ring main unit (RMU) and modular MV switchgear for secondary distribution applications up to 24kV.

Part of SeT Series
